R10M Semi-portal Steel Casting Machine 380v Voltage Water Cooling

Name: R10M Semiportal Steel Casting Machine 380v Voltage Water Cooling
Brand: Haijun
Price: 1 USD

China R10M Semi-portal Steel Casting Machine 380v Voltage Water Cooling wholesale

Place of Origin : Jiangsu Wuxi China (mainland)

Brand Name : Haijun

Model Number : R4M 2strands

MOQ : 1 Set

Packaging Details : Container

Delivery Time : 2 months

Payment Terms : T/T , L/C

Supply Ability : 30 strands CCM per year

Certification : ISO 9001

Price : Negotiable

Condition : New

Product name : R4M，6M,8M,10M,12M CCM billet

Packing : wooden case;container

Dimension : as per customer's need

Warranty : 1 year

Voltage : 380v

Delivery date : 2 months

Contact Now

R10M Semi-portal Strands Steel Casting Machine 15T per Hour with ISO centrification

radius: R4M,R6M,R8M,R10M

Strand number : 1-8 strands

with ISO certification

advanced design

safe operation

Description:

1. Basic standby technical parameters:

Steel billet casting machine radius	4m
Strand quantity	2 strands
Ladle support type	Ladle turret,Ladle car,ladle mounts
Tundish carriage	Semi-portal, cross sliding function
Casting method	Metering nozzle, open casting
Secondary cooling	Water cooling , 1 adjusting circuit
Withdrawal straightening machine	Totally 5 roller, progressive straightening
Roll table	Chain group centralized drive
Dummy bar	Rigid, with self-adapting dummy bar head
Billet cutting	Manual cutting
Billet conveying	Group centralized live roller table
Cooling bank type	Simple cooling bed

2. Casting speed, productivity and strand quantity

R4m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:

Casting sectional area(mm)

80×80

100×100

120×120

Casting speed(m/min)

3.0

2.8

2.6

NO.	Billet size	Casting speed	hourly output (tons)	Daily output 24hour (tons)	Annual output(330days) (tons)
1	80×80	3.0m/min	7.42	178	58,766
2	100×100	2.8m/min	10.81	259.	85615
3	120×120	2.6m/min	15.69	377	124,266

The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade	Casting grade(m/min)	Effective deformation rate(ε)	Allowable deformation rate(ε_max)
Straight carbon steel	1.8～2.5	Please refer to the computational table	0.25
Low alloy steel	1.3～2.0	Please refer to the computational table	0.15～0.2

3. Technical process description and capacity of steel billet CCM

Induction furnace:

Nominal capacity	15T
Tap-to-tap cycle	60min
Furnace quantity	2set

Production capacity

Working days	330 days/year
Average number of daily furnace	24/day
Production capacity	100,000t/year

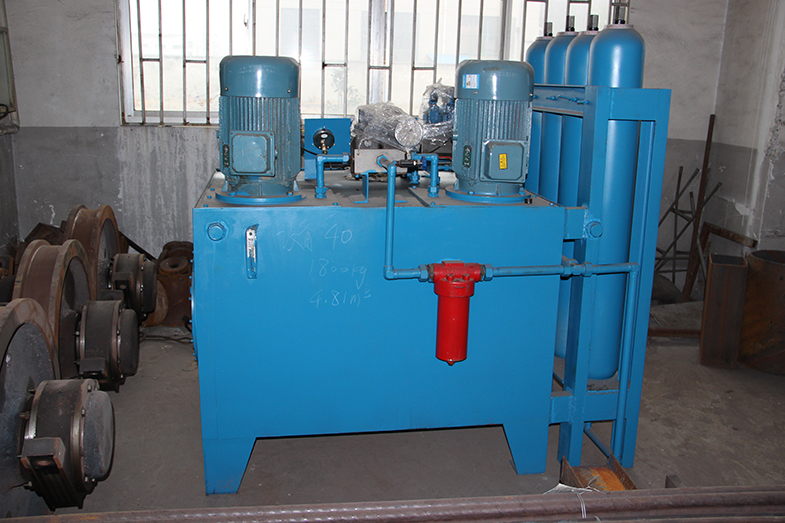

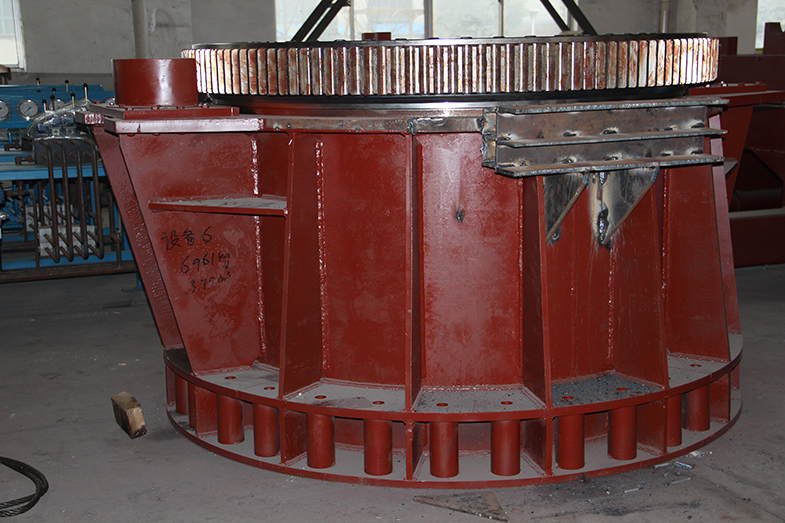

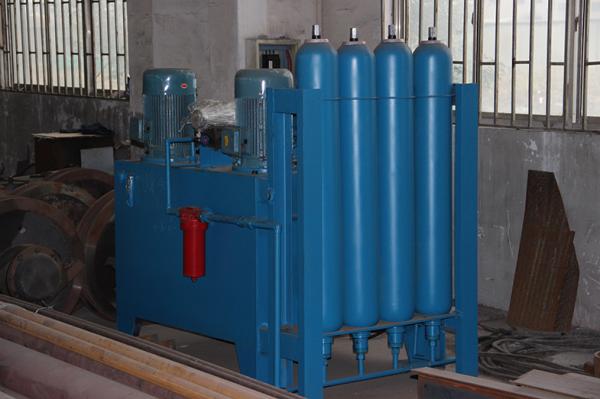

Machine Pictures

R10M Semi-portal Steel Casting Machine 380v Voltage Water Cooling

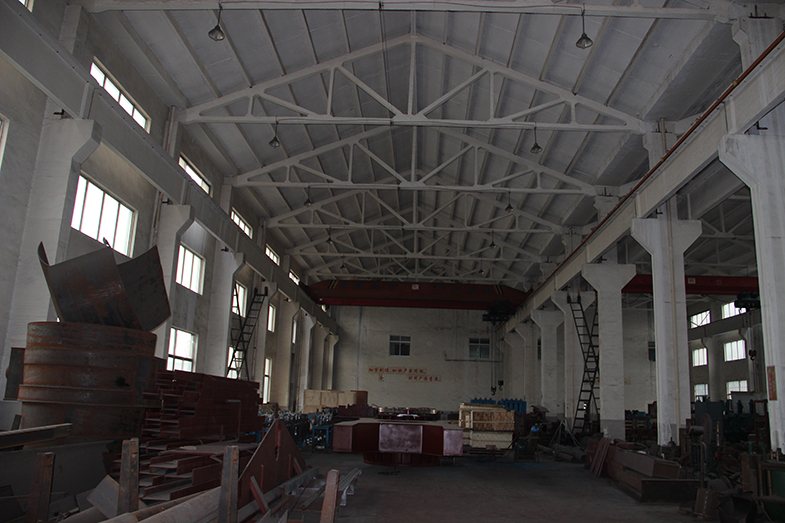

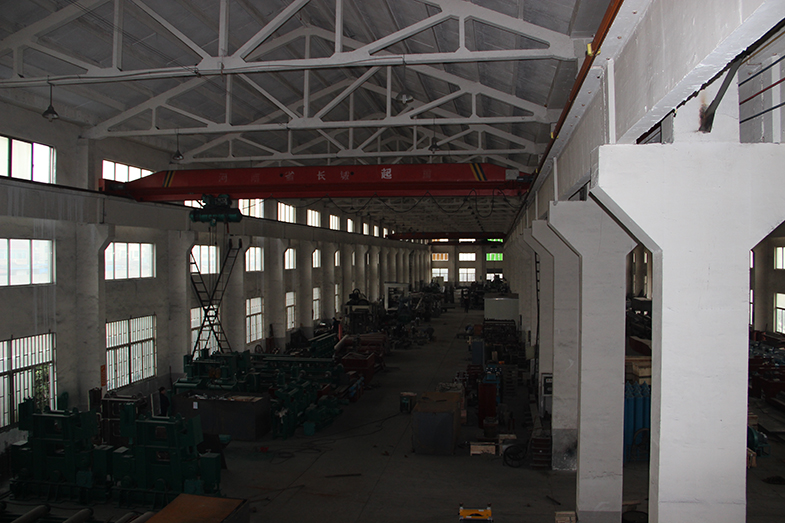

Factory Pictures

R10M Semi-portal Steel Casting Machine 380v Voltage Water Cooling
